75 Ohm SMC Jack to 50 Ohm BNC Female Adapter

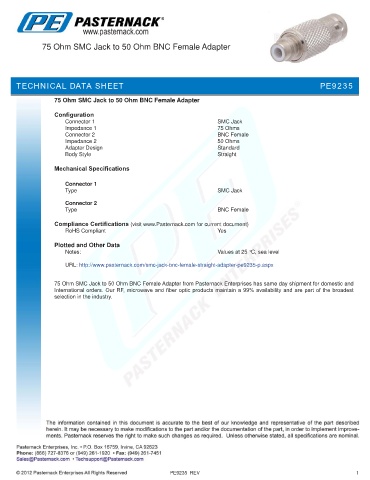

TECHNICAL DATA SHEET PE9235

75 Ohm SMC Jack to 50 Ohm BNC Female Adapter

Configuration
Connector 1 SMC Jack
Impedance 1 75 Ohms
Connector 2 BNC Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications
.
Connector 1
Type SMC Jack

Connector 2
Type BNC Female

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/smc-jack-bnc-female-straight-adapter-pe9235-p.aspx

75 Ohm SMC Jack to 50 Ohm BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

PE9235 REV 1
