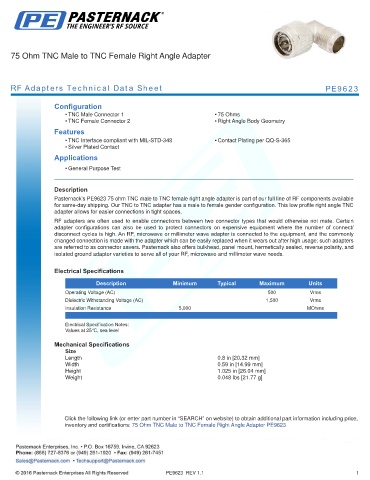

75 Ohm TNC Male to TNC Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9623

Configuration
• TNC Male Connector 1 • 75 Ohms
• TNC Female Connector 2 • Right Angle Body Geometry
Features
• TNC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9623 75 ohm TNC male to TNC female right angle adapter is part of our full line of RF components available
for same-day shipping. Our TNC to TNC adapter has a male to female gender configuration. This low profile right angle TNC
adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level
Mechanical Specifications
Size
Length 0.8 in [20.32 mm]
Width 0.59 in [14.99 mm]
Height 1.025 in [26.04 mm]
Weight 0.048 lbs [21.77 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male to TNC Female Right Angle Adapter PE9623
