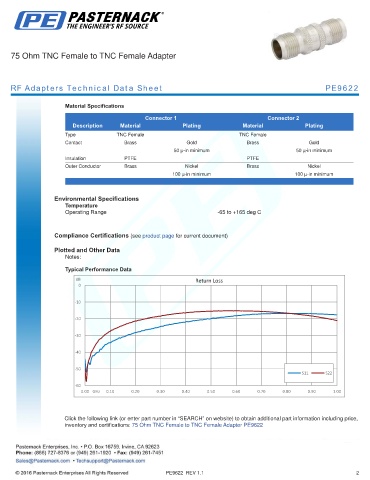

75 Ohm TNC Female to TNC Female Adapter

RF Adapters Technical Data Sheet PE9622

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type TNC Female TNC Female
Contact Brass Gold Brass Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40

-50
S11 S22
-60
0.00 GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female to TNC Female Adapter PE9622

PE9622 REV 1.1 2
