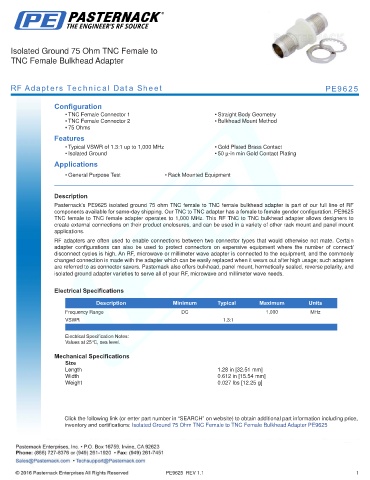

Isolated Ground 75 Ohm TNC Female to
TNC Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9625

Configuration
• TNC Female Connector 1 • Straight Body Geometry
• TNC Female Connector 2 • Bulkhead Mount Method
• 75 Ohms
Features
• Typical VSWR of 1.3:1 up to 1,000 MHz • Gold Plated Brass Contact
• Isolated Ground • 50 µ-in min Gold Contact Plating
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9625 isolated ground 75 ohm TNC female to TNC female bulkhead adapter is part of our full line of RF
components available for same-day shipping. Our TNC to TNC adapter has a female to female gender configuration. PE9625
TNC female to TNC female adapter operates to 1,000 MHz. This RF TNC to TNC bulkhead adapter allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.612 in [15.54 mm]
Weight 0.027 lbs [12.25 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Isolated Ground 75 Ohm TNC Female to TNC Female Bulkhead Adapter PE9625

PE9625 REV 1.1 1
