Isolated Ground 75 Ohm TNC Female to
TNC Female Bulkhead Adapter
RF Adapters Technical Data Sheet PE9625

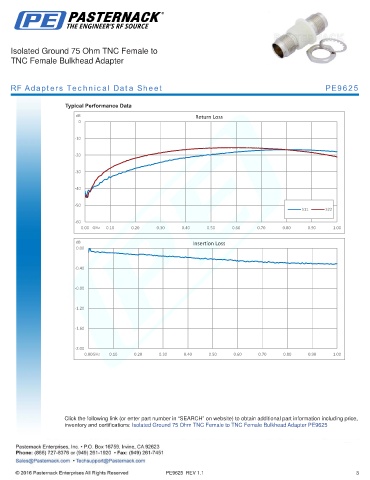

Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0.00 GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0.00GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Isolated Ground 75 Ohm TNC Female to TNC Female Bulkhead Adapter PE9625
