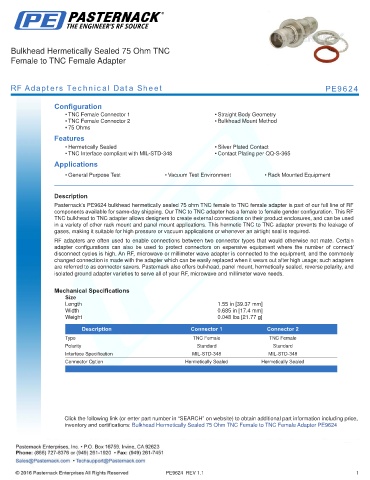

Bulkhead Hermetically Sealed 75 Ohm TNC
Female to TNC Female Adapter

RF Adapters Technical Data Sheet PE9624

Configuration
• TNC Female Connector 1 • Straight Body Geometry
• TNC Female Connector 2 • Bulkhead Mount Method
• 75 Ohms
Features
• Hermetically Sealed • Silver Plated Contact
• TNC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
Applications
• General Purpose Test • Vacuum Test Environment • Rack Mounted Equipment

.
Description
Pasternack’s PE9624 bulkhead hermetically sealed 75 ohm TNC female to TNC female adapter is part of our full line of RF
components available for same-day shipping. Our TNC to TNC adapter has a female to female gender configuration. This RF
TNC bulkhead to TNC adapter allows designers to create external connections on their product enclosures, and can be used
in a variety of other rack mount and panel mount applications. This hermetic TNC to TNC adapter prevents the leakage of
gases, making it suitable for high pressure or vacuum applications or whenever an airtight seal is required.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.55 in [39.37 mm]
Width 0.685 in [17.4 mm]
Weight 0.048 lbs [21.77 g]
.
Description Connector 1 Connector 2
Type TNC Female TNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Connector Option Hermetically Sealed Hermetically Sealed
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed 75 Ohm TNC Female to TNC Female Adapter PE9624

PE9624 REV 1.1 1
