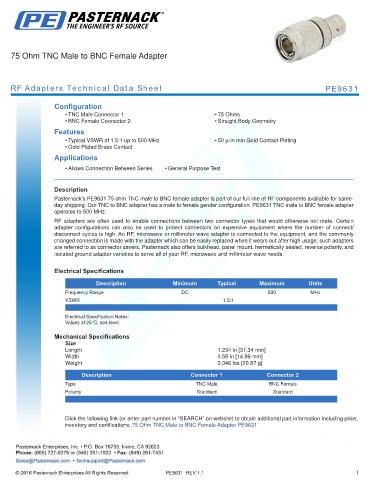

75 Ohm TNC Male to BNC Female Adapter

RF Adapters Technical Data Sheet PE9631

Configuration
• TNC Male Connector 1 • 75 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features
• Typical VSWR of 1.5:1 up to 500 MHz • 50 µ-in min Gold Contact Plating
• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9631 75 ohm TNC male to BNC female adapter is part of our full line of RF components available for same-
day shipping. Our TNC to BNC adapter has a male to female gender configuration. PE9631 TNC male to BNC female adapter
operates to 500 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.5:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.234 in [31.34 mm]
Width 0.59 in [14.99 mm]
Weight 0.046 lbs [20.87 g]
.
Description Connector 1 Connector 2
Type TNC Male BNC Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male to BNC Female Adapter PE9631

PE9631 REV 1.1 1
