75 Ohm TNC Male to F Male Adapter

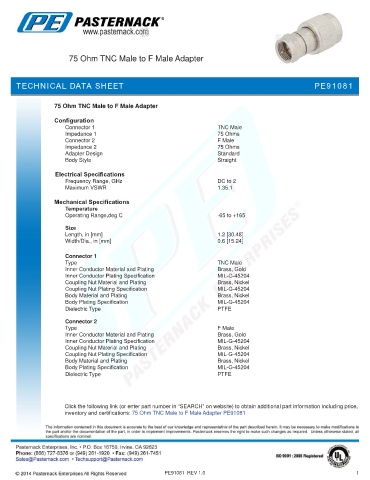

TECHNICAL DATA SHEET PE91081

75 Ohm TNC Male to F Male Adapter

Configuration
Connector 1 TNC Male
Impedance 1 75 Ohms
Connector 2 F Male
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 2
Maximum VSWR 1.35:1

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.2 [30.48]
Width/Dia., in [mm] 0.6 [15.24]
.
Connector 1
Type TNC Male
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Body Plating Specification MIL-G-45204
Dielectric Type PTFE

Connector 2
Type F Male
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Body Plating Specification MIL-G-45204
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male to F Male Adapter PE91081
