75 Ohm TNC Male to BNC Female Adapter

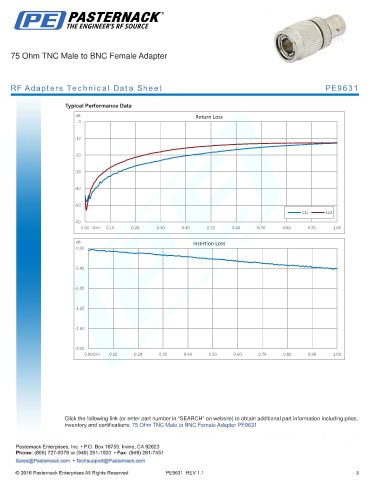

RF Adapters Technical Data Sheet PE9631
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0.00 GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0.00GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male to BNC Female Adapter PE9631
