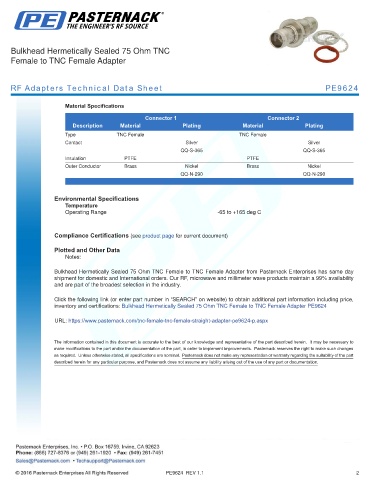

Bulkhead Hermetically Sealed 75 Ohm TNC
Female to TNC Female Adapter

RF Adapters Technical Data Sheet PE9624

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type TNC Female TNC Female
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Bulkhead Hermetically Sealed 75 Ohm TNC Female to TNC Female Adapter from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed 75 Ohm TNC Female to TNC Female Adapter PE9624

URL: https://www.pasternack.com/tnc-female-tnc-female-straight-adapter-pe9624-p.aspx

PE9624 REV 1.1 2
