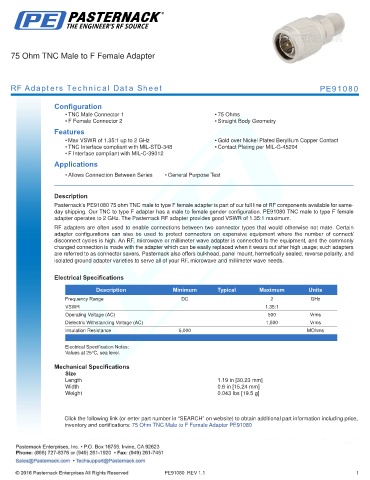

75 Ohm TNC Male to F Female Adapter

RF Adapters Technical Data Sheet PE91080

Configuration
• TNC Male Connector 1 • 75 Ohms
• F Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.35:1 up to 2 GHz • Gold over Nickel Plated Beryllium Copper Contact
• TNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• F Interface compliant with MIL-C-39012
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE91080 75 ohm TNC male to type F female adapter is part of our full line of RF components available for same-
day shipping. Our TNC to type F adapter has a male to female gender configuration. PE91080 TNC male to type F female
adapter operates to 2 GHz. The Pasternack RF adapter provides good VSWR of 1.35:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.19 in [30.23 mm]
Width 0.6 in [15.24 mm]
Weight 0.043 lbs [19.5 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male to F Female Adapter PE91080

PE91080 REV 1.1 1
