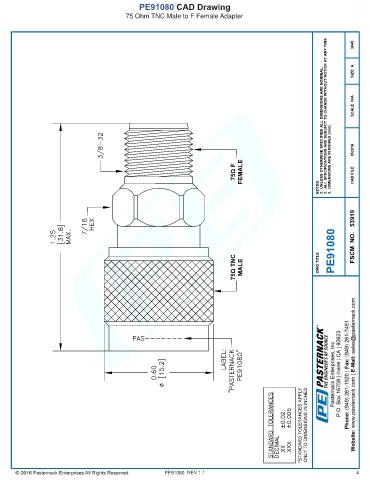

PE91080 CAD Drawing
75 Ohm TNC Male to F Female Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3045

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 052616

75Ω F FEMALE CAD FILE

NOTES:

PE91080 FSCM NO. 53919

75Ω TNC MALE DWG TITLE

*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE91080 REV 1.1 4
