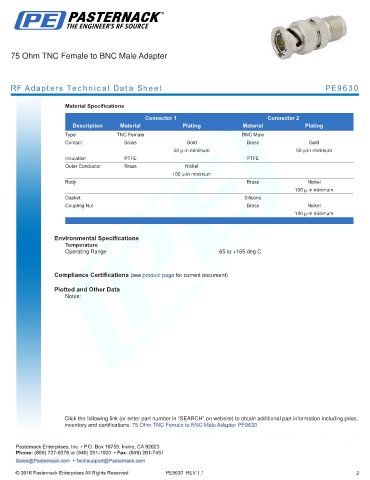

75 Ohm TNC Female to BNC Male Adapter
RF Adapters Technical Data Sheet PE9630
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type TNC Female BNC Male
Contact Brass Gold Brass Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Gasket Silicone
Coupling Nut Brass Nickel
100 µ-in minimum
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female to BNC Male Adapter PE9630
