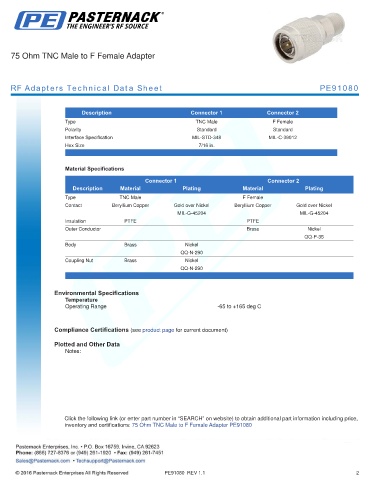

75 Ohm TNC Male to F Female Adapter
RF Adapters Technical Data Sheet PE91080
.
Description Connector 1 Connector 2
Type TNC Male F Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-C-39012
Hex Size 7/16 in.
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type TNC Male F Female
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-P-35
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male to F Female Adapter PE91080
PE91080 REV 1.1 2
