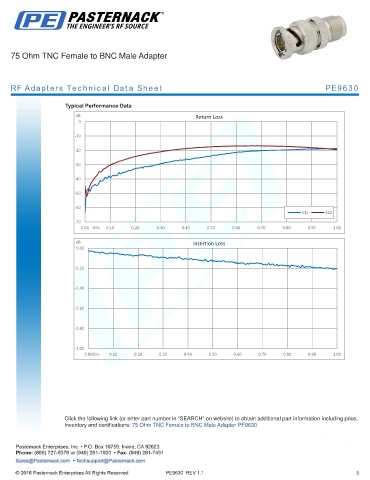

75 Ohm TNC Female to BNC Male Adapter
RF Adapters Technical Data Sheet PE9630
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0.00 GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female to BNC Male Adapter PE9630
