Double Banana Plug to 50 Ohm BNC Female Adapter

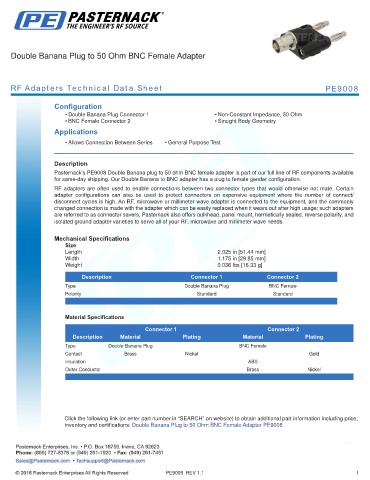

RF Adapters Technical Data Sheet PE9008

Configuration
• Double Banana Plug Connector 1 • Non-Constant Impedance, 50 Ohm
• BNC Female Connector 2 • Straight Body Geometry
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9008 Double Banana plug to 50 ohm BNC female adapter is part of our full line of RF components available
for same-day shipping. Our Double Banana to BNC adapter has a plug to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.025 in [51.44 mm]
Width 1.175 in [29.85 mm]
Weight 0.036 lbs [16.33 g]
.
Description Connector 1 Connector 2
Type Double Banana Plug BNC Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Double Banana Plug BNC Female
Contact Brass Nickel Gold
Insulation ABS
Outer Conductor Brass Nickel
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Double Banana Plug to 50 Ohm BNC Female Adapter PE9008

PE9008 REV 1.1 1
