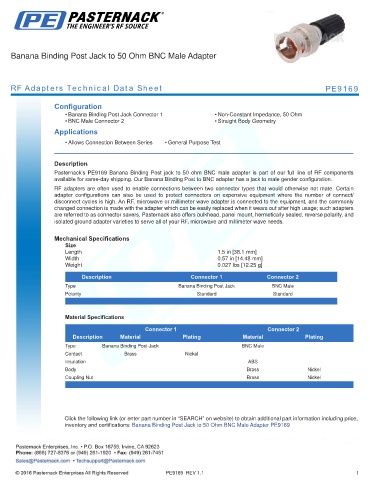

Banana Binding Post Jack to 50 Ohm BNC Male Adapter

RF Adapters Technical Data Sheet PE9169

Configuration
• Banana Binding Post Jack Connector 1 • Non-Constant Impedance, 50 Ohm
• BNC Male Connector 2 • Straight Body Geometry
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9169 Banana Binding Post jack to 50 ohm BNC male adapter is part of our full line of RF components
available for same-day shipping. Our Banana Binding Post to BNC adapter has a jack to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 0.57 in [14.48 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type Banana Binding Post Jack BNC Male
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Banana Binding Post Jack BNC Male
Contact Brass Nickel
Insulation ABS
Body Brass Nickel
Coupling Nut Brass Nickel
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Banana Binding Post Jack to 50 Ohm BNC Male Adapter PE9169

PE9169 REV 1.1 1
