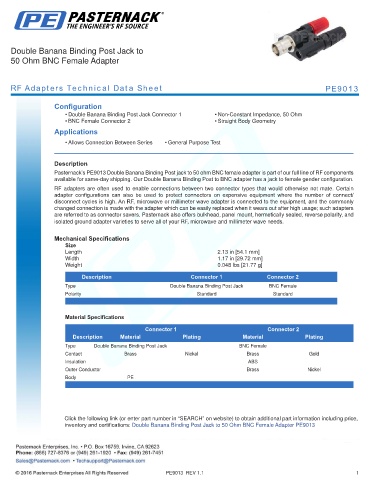

Double Banana Binding Post Jack to
50 Ohm BNC Female Adapter

RF Adapters Technical Data Sheet PE9013

Configuration
• Double Banana Binding Post Jack Connector 1 • Non-Constant Impedance, 50 Ohm
• BNC Female Connector 2 • Straight Body Geometry
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9013 Double Banana Binding Post jack to 50 ohm BNC female adapter is part of our full line of RF components
available for same-day shipping. Our Double Banana Binding Post to BNC adapter has a jack to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.13 in [54.1 mm]
Width 1.17 in [29.72 mm]
Weight 0.048 lbs [21.77 g]
.
Description Connector 1 Connector 2
Type Double Banana Binding Post Jack BNC Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Double Banana Binding Post Jack BNC Female
Contact Brass Nickel Brass Gold
Insulation ABS
Outer Conductor Brass Nickel
Body PE
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Double Banana Binding Post Jack to 50 Ohm BNC Female Adapter PE9013

PE9013 REV 1.1 1
