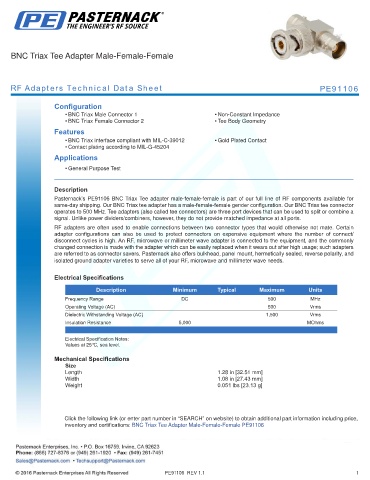

BNC Triax Tee Adapter Male-Female-Female

RF Adapters Technical Data Sheet PE91106

Configuration
• BNC Triax Male Connector 1 • Non-Constant Impedance
• BNC Triax Female Connector 2 • Tee Body Geometry
Features
• BNC Triax interface compliant with MIL-C-39012 • Gold Plated Contact
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE91106 BNC Triax Tee adapter male-female-female is part of our full line of RF components available for
same-day shipping. Our BNC Triax tee adapter has a male-female-female gender configuration. Our BNC Triax tee connector
operates to 500 MHz. Tee adapters (also called tee connectors) are three port devices that can be used to split or combine a
signal. Unlike power dividers/combiners, however, they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 1.08 in [27.43 mm]
Weight 0.051 lbs [23.13 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Triax Tee Adapter Male-Female-Female PE91106
