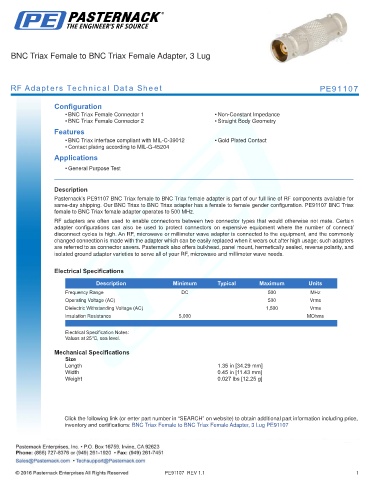

BNC Triax Female to BNC Triax Female Adapter, 3 Lug

RF Adapters Technical Data Sheet PE91107

Configuration
• BNC Triax Female Connector 1 • Non-Constant Impedance
• BNC Triax Female Connector 2 • Straight Body Geometry
Features
• BNC Triax interface compliant with MIL-C-39012 • Gold Plated Contact
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE91107 BNC Triax female to BNC Triax female adapter is part of our full line of RF components available for
same-day shipping. Our BNC Triax to BNC Triax adapter has a female to female gender configuration. PE91107 BNC Triax
female to BNC Triax female adapter operates to 500 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.35 in [34.29 mm]
Width 0.45 in [11.43 mm]
Weight 0.027 lbs [12.25 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Triax Female to BNC Triax Female Adapter, 3 Lug PE91107

PE91107 REV 1.1 1
