Bulkhead Mount Isolated Ground BNC Triax
Female to BNC Triax Female Adapter

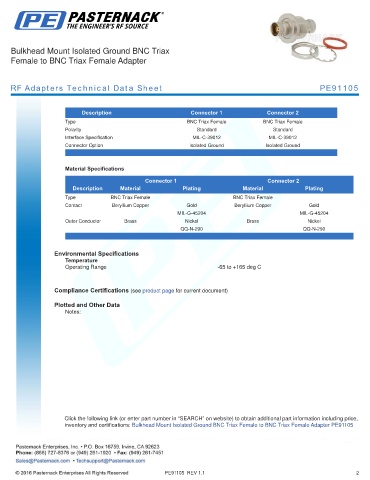

RF Adapters Technical Data Sheet PE91105

.
Description Connector 1 Connector 2
Type BNC Triax Female BNC Triax Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Connector Option Isolated Ground Isolated Ground
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Triax Female BNC Triax Female
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount Isolated Ground BNC Triax Female to BNC Triax Female Adapter PE91105

PE91105 REV 1.1 2
