Page 3555 - RF Adapter Datasheets
P. 3555

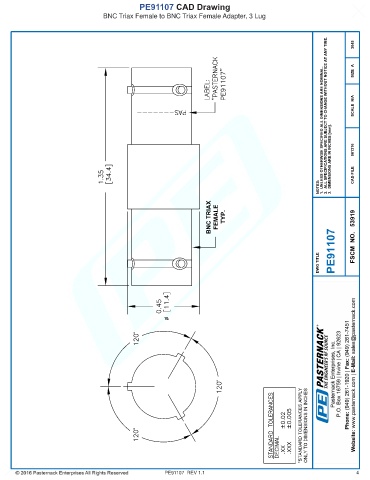

PE91107 CAD Drawing
BNC Triax Female to BNC Triax Female Adapter, 3 Lug
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3045
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 061316
NOTES: CAD FILE
BNC TRIAX FEMALE TYP. FSCM NO. 53919
DWG TITLE PE91107
*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE91107 REV 1.1 4
