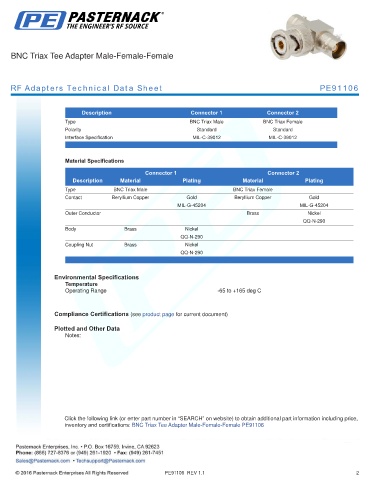

BNC Triax Tee Adapter Male-Female-Female

RF Adapters Technical Data Sheet PE91106

.
Description Connector 1 Connector 2
Type BNC Triax Male BNC Triax Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Triax Male BNC Triax Female
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Triax Tee Adapter Male-Female-Female PE91106

PE91106 REV 1.1 2
