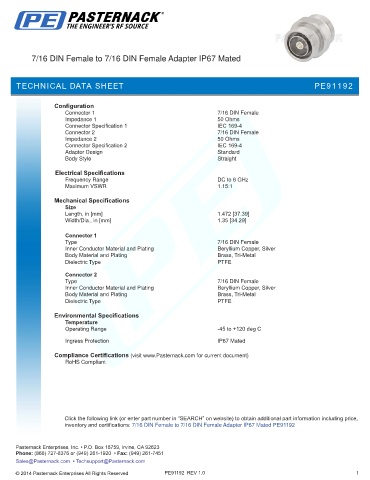

7/16 DIN Female to 7/16 DIN Female Adapter IP67 Mated

TECHNICAL DATA SHEET PE91192

Configuration
Connector 1 7/16 DIN Female
Impedance 1 50 Ohms
Connector Specification 1 IEC 169-4
Connector 2 7/16 DIN Female
Impedance 2 50 Ohms
Connector Specification 2 IEC 169-4
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.15:1
Mechanical Specifications
Size
Length, in [mm] 1.472 [37.39]
Width/Dia., in [mm] 1.35 [34.29]
.
Connector 1
Type 7/16 DIN Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Connector 2
Type 7/16 DIN Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Environmental Specifications
Temperature
Operating Range -45 to +120 deg C

Ingress Protection IP67 Mated

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Female to 7/16 DIN Female Adapter IP67 Mated PE91192

PE91192 REV 1.0 1
