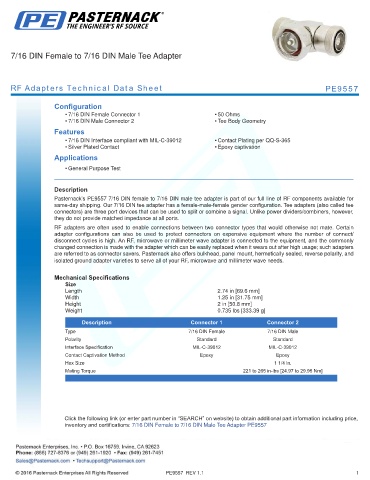

7/16 DIN Female to 7/16 DIN Male Tee Adapter

RF Adapters Technical Data Sheet PE9557

Configuration
• 7/16 DIN Female Connector 1 • 50 Ohms
• 7/16 DIN Male Connector 2 • Tee Body Geometry
Features
• 7/16 DIN Interface compliant with MIL-C-39012 • Contact Plating per QQ-S-365
• Silver Plated Contact • Epoxy captivation
Applications
• General Purpose Test
.
Description
Pasternack’s PE9557 7/16 DIN female to 7/16 DIN male tee adapter is part of our full line of RF components available for
same-day shipping. Our 7/16 DIN tee adapter has a female-male-female gender configuration. Tee adapters (also called tee
connectors) are three port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however,
they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.74 in [69.6 mm]
Width 1.25 in [31.75 mm]
Height 2 in [50.8 mm]
Weight 0.735 lbs [333.39 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Female 7/16 DIN Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Contact Captivation Method Epoxy Epoxy
Hex Size 1 1/4 in.
Mating Torque 221 to 265 in-lbs [24.97 to 29.95 Nm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Female to 7/16 DIN Male Tee Adapter PE9557
