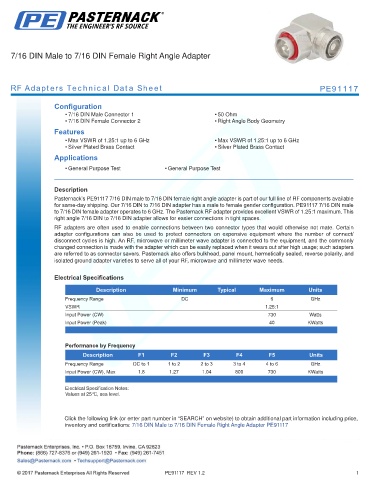

7/16 DIN Male to 7/16 DIN Female Right Angle Adapter

RF Adapters Technical Data Sheet PE91117

Configuration
• 7/16 DIN Male Connector 1 • 50 Ohm
• 7/16 DIN Female Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.25:1 up to 6 GHz • Max VSWR of 1.25:1 up to 6 GHz
• Silver Plated Brass Contact • Silver Plated Brass Contact
Applications
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE91117 7/16 DIN male to 7/16 DIN female right angle adapter is part of our full line of RF components available
for same-day shipping. Our 7/16 DIN to 7/16 DIN adapter has a male to female gender configuration. PE91117 7/16 DIN male
to 7/16 DIN female adapter operates to 6 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. This
right angle 7/16 DIN to 7/16 DIN adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.25:1
Input Power (CW) 730 Watts
Input Power (Peak) 40 KWatts
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 2 2 to 3 3 to 4 4 to 6 GHz
Input Power (CW), Max 1.8 1.27 1.04 800 730 KWatts
.
Electrical Specification Notes:
Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Female Right Angle Adapter PE91117

PE91117 REV 1.2 1
