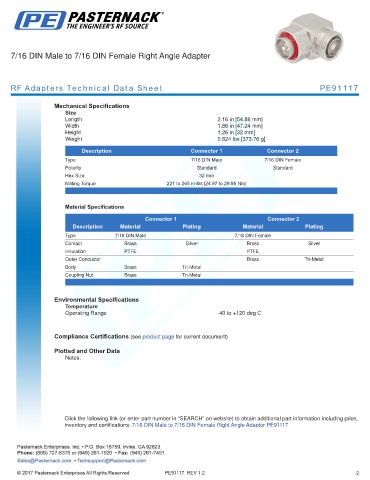

7/16 DIN Male to 7/16 DIN Female Right Angle Adapter

RF Adapters Technical Data Sheet PE91117

Mechanical Specifications
Size
Length 2.16 in [54.86 mm]
Width 1.86 in [47.24 mm]
Height 1.26 in [32 mm]
Weight 0.824 lbs [373.76 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Male 7/16 DIN Female
Polarity Standard Standard
Hex Size 32 mm
Mating Torque 221 to 265 in-lbs [24.97 to 29.95 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Male 7/16 DIN Female
Contact Brass Silver Brass Silver
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
Body Brass Tri-Metal
Coupling Nut Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -40 to +120 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Female Right Angle Adapter PE91117
