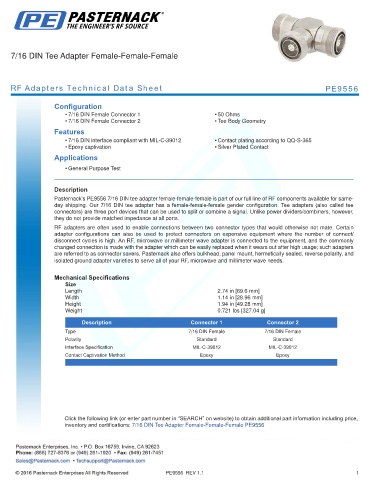

7/16 DIN Tee Adapter Female-Female-Female

RF Adapters Technical Data Sheet PE9556

Configuration
• 7/16 DIN Female Connector 1 • 50 Ohms
• 7/16 DIN Female Connector 2 • Tee Body Geometry
Features
• 7/16 DIN interface compliant with MIL-C-39012 • Contact plating according to QQ-S-365
• Epoxy captivation • Silver Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9556 7/16 DIN tee adapter female-female-female is part of our full line of RF components available for same-
day shipping. Our 7/16 DIN tee adapter has a female-female-female gender configuration. Tee adapters (also called tee
connectors) are three port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however,
they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.74 in [69.6 mm]
Width 1.14 in [28.96 mm]
Height 1.94 in [49.28 mm]
Weight 0.721 lbs [327.04 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Female 7/16 DIN Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Contact Captivation Method Epoxy Epoxy
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Tee Adapter Female-Female-Female PE9556

PE9556 REV 1.1 1
