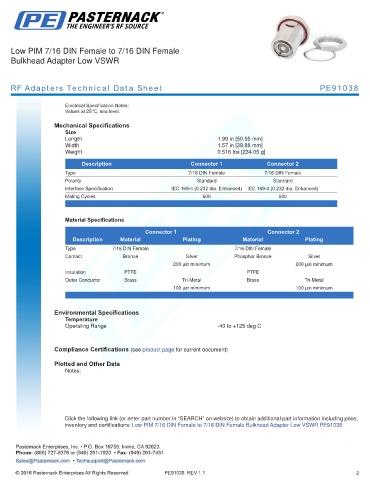

Low PIM 7/16 DIN Female to 7/16 DIN Female
Bulkhead Adapter Low VSWR

RF Adapters Technical Data Sheet PE91038

Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.99 in [50.55 mm]
Width 1.57 in [39.88 mm]
Weight 0.516 lbs [234.05 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Female 7/16 DIN Female
Polarity Standard Standard
Interface Specification IEC 169-4 (0.232 dia. Enhanced) IEC 169-4 (0.232 dia. Enhanced)
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Female 7/16 DIN Female
Contact Bronze Silver Phosphor Bronze Silver
200 µin minimum 200 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal Brass Tri-Metal
100 µin minimum 100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 7/16 DIN Female to 7/16 DIN Female Bulkhead Adapter Low VSWR PE91038

PE91038 REV 1.1 2
