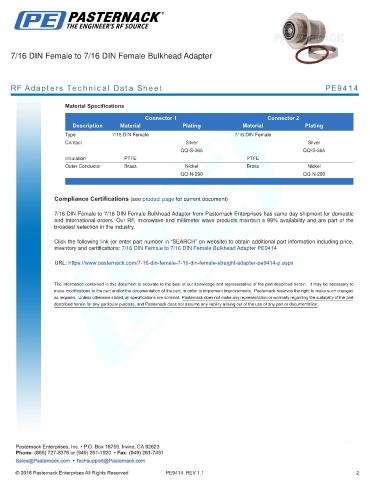

7/16 DIN Female to 7/16 DIN Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9414

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Female 7/16 DIN Female
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Compliance Certifications (see product page for current document)

7/16 DIN Female to 7/16 DIN Female Bulkhead Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Female to 7/16 DIN Female Bulkhead Adapter PE9414

URL: https://www.pasternack.com/7-16-din-female-7-16-din-female-straight-adapter-pe9414-p.aspx

PE9414 REV 1.1 2
