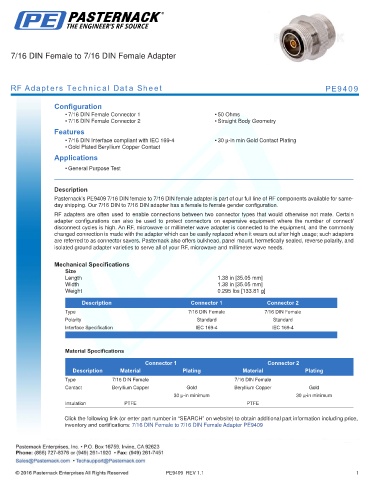

7/16 DIN Female to 7/16 DIN Female Adapter

RF Adapters Technical Data Sheet PE9409

Configuration
• 7/16 DIN Female Connector 1 • 50 Ohms
• 7/16 DIN Female Connector 2 • Straight Body Geometry
Features
• 7/16 DIN Interface compliant with IEC 169-4 • 30 µ-in min Gold Contact Plating
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9409 7/16 DIN female to 7/16 DIN female adapter is part of our full line of RF components available for same-
day shipping. Our 7/16 DIN to 7/16 DIN adapter has a female to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.38 in [35.05 mm]
Width 1.38 in [35.05 mm]
Weight 0.295 lbs [133.81 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Female 7/16 DIN Female
Polarity Standard Standard
Interface Specification IEC 169-4 IEC 169-4
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Female 7/16 DIN Female
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Female to 7/16 DIN Female Adapter PE9409

PE9409 REV 1.1 1
