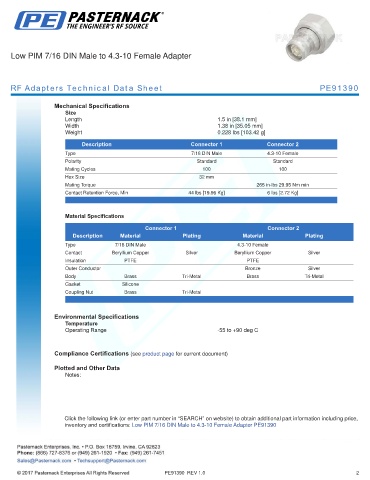

Low PIM 7/16 DIN Male to 4.3-10 Female Adapter

RF Adapters Technical Data Sheet PE91390

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 1.38 in [35.05 mm]
Weight 0.228 lbs [103.42 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Male 4.3-10 Female
Polarity Standard Standard
Mating Cycles 100 100
Hex Size 32 mm
Mating Torque 265 in-lbs 29.95 Nm min
Contact Retention Force, Min 44 lbs [19.96 Kg] 6 lbs [2.72 Kg]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Male 4.3-10 Female
Contact Beryllium Copper Silver Beryllium Copper Silver
Insulation PTFE PTFE
Outer Conductor Bronze Silver
Body Brass Tri-Metal Brass Tri-Metal
Gasket Silicone
Coupling Nut Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -55 to +90 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 7/16 DIN Male to 4.3-10 Female Adapter PE91390

PE91390 REV 1.0 2
