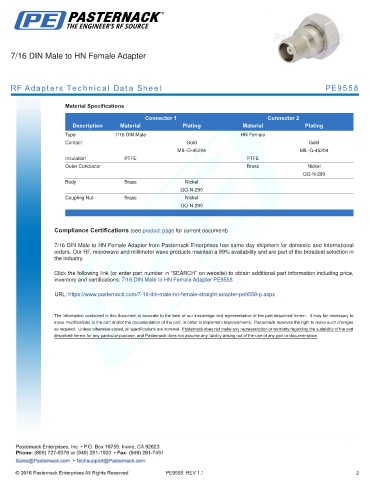

7/16 DIN Male to HN Female Adapter

RF Adapters Technical Data Sheet PE9558

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Male HN Female
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Compliance Certifications (see product page for current document)

7/16 DIN Male to HN Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to HN Female Adapter PE9558

URL: https://www.pasternack.com/7-16-din-male-hn-female-straight-adapter-pe9558-p.aspx

PE9558 REV 1.1 2
