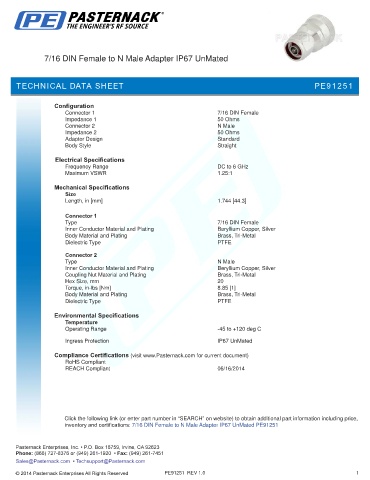

7/16 DIN Female to N Male Adapter IP67 UnMated

TECHNICAL DATA SHEET PE91251

Configuration
Connector 1 7/16 DIN Female
Impedance 1 50 Ohms
Connector 2 N Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.25:1

Mechanical Specifications
Size
Length, in [mm] 1.744 [44.3]
.
Connector 1
Type 7/16 DIN Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Connector 2
Type N Male
Inner Conductor Material and Plating Beryllium Copper, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 20
Torque, in-lbs [Nm] 8.85 [1]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Environmental Specifications
Temperature
Operating Range -45 to +120 deg C

Ingress Protection IP67 UnMated

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/16/2014

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Female to N Male Adapter IP67 UnMated PE91251

PE91251 REV 1.0 1
