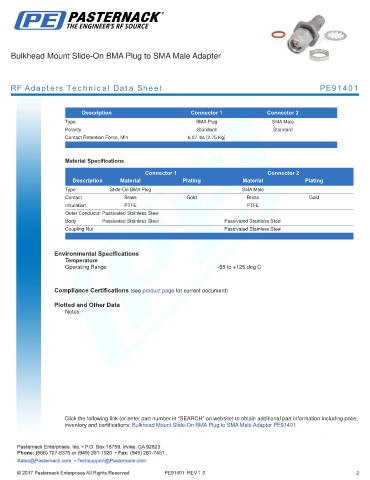

Bulkhead Mount Slide-On BMA Plug to SMA Male Adapter

RF Adapters Technical Data Sheet PE91401

.
Description Connector 1 Connector 2
Type BMA Plug SMA Male
Polarity Standard Standard
Contact Retention Force, Min 6.07 lbs [2.75 Kg]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Slide-On BMA Plug SMA Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount Slide-On BMA Plug to SMA Male Adapter PE91401

PE91401 REV 1.0 2
