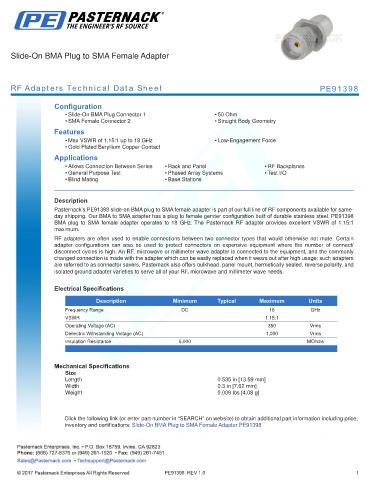

Slide-On BMA Plug to SMA Female Adapter

RF Adapters Technical Data Sheet PE91398

Configuration
• Slide-On BMA Plug Connector 1 • 50 Ohm
• SMA Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.15:1 up to 18 GHz • Low-Engagement Force
• Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • Rack and Panel • RF Backplanes
• General Purpose Test • Phased Array Systems • Test I/O
• Blind Mating • Base Stations
.
Description
Pasternack’s PE91398 slide-on BMA plug to SMA female adapter is part of our full line of RF components available for same-
day shipping. Our BMA to SMA adapter has a plug to female gender configuration built of durable stainless steel. PE91398
BMA plug to SMA female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1
maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Operating Voltage (AC) 350 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 0.535 in [13.59 mm]
Width 0.3 in [7.62 mm]
Weight 0.009 lbs [4.08 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug to SMA Female Adapter PE91398
