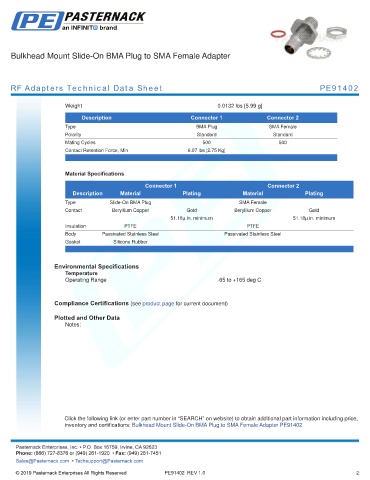

Bulkhead Mount Slide-On BMA Plug to SMA Female Adapter
RF Adapters Technical Data Sheet PE91402
Weight 0.0132 lbs [5.99 g]
.
Description Connector 1 Connector 2
Type BMA Plug SMA Female
Polarity Standard Standard
Mating Cycles 500 500
Contact Retention Force, Min 6.07 lbs [2.75 Kg]
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Slide-On BMA Plug SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
51.18µ in. minimum 51.18µ in. minimum
Insulation PTFE PTFE
Body Passivated Stainless Steel Passivated Stainless Steel
Gasket Silicone Rubber
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount Slide-On BMA Plug to SMA Female Adapter PE91402
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE91402 REV 1.0 2
