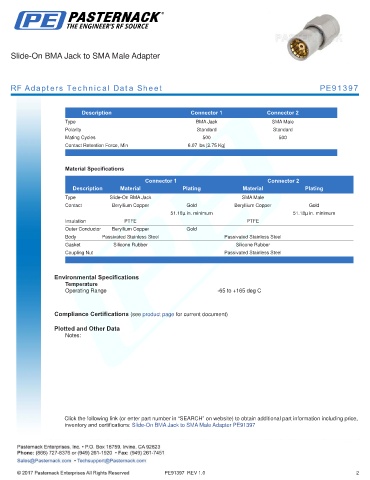

Slide-On BMA Jack to SMA Male Adapter
RF Adapters Technical Data Sheet PE91397
.
Description Connector 1 Connector 2
Type BMA Jack SMA Male
Polarity Standard Standard
Mating Cycles 500 500
Contact Retention Force, Min 6.07 lbs [2.75 Kg]
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Slide-On BMA Jack SMA Male
Contact Beryllium Copper Gold Beryllium Copper Gold
51.18µ in. minimum 51.18µ in. minimum
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold
Body Passivated Stainless Steel Passivated Stainless Steel
Gasket Silicone Rubber Silicone Rubber
Coupling Nut Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack to SMA Male Adapter PE91397
PE91397 REV 1.0 2
