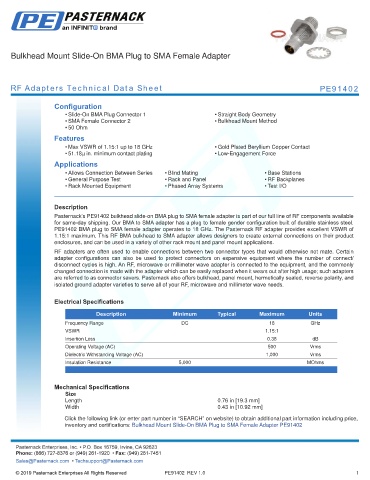

Bulkhead Mount Slide-On BMA Plug to SMA Female Adapter

RF Adapters Technical Data Sheet PE91402

Configuration
• Slide-On BMA Plug Connector 1 • Straight Body Geometry
• SMA Female Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.15:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• 51.18µ in. minimum contact plating • Low-Engagement Force
Applications
• Allows Connection Between Series • Blind Mating • Base Stations
• General Purpose Test • Rack and Panel • RF Backplanes
• Rack Mounted Equipment • Phased Array Systems • Test I/O
.
Description
Pasternack’s PE91402 bulkhead slide-on BMA plug to SMA female adapter is part of our full line of RF components available
for same-day shipping. Our BMA to SMA adapter has a plug to female gender configuration built of durable stainless steel.
PE91402 BMA plug to SMA female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of
1.15:1 maximum. This RF BMA bulkhead to SMA adapter allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Insertion Loss 0.38 dB
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 0.76 in [19.3 mm]
Width 0.43 in [10.92 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount Slide-On BMA Plug to SMA Female Adapter PE91402
-
