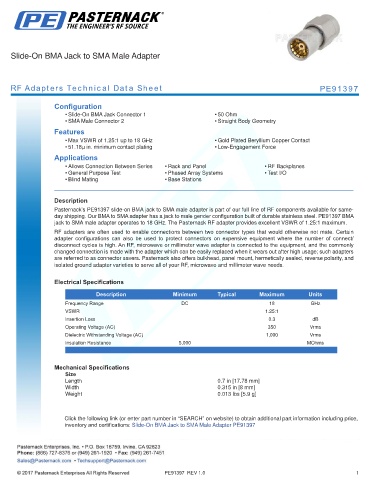

Slide-On BMA Jack to SMA Male Adapter

RF Adapters Technical Data Sheet PE91397

Configuration
• Slide-On BMA Jack Connector 1 • 50 Ohm
• SMA Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• 51.18µ in. minimum contact plating • Low-Engagement Force
Applications
• Allows Connection Between Series • Rack and Panel • RF Backplanes
• General Purpose Test • Phased Array Systems • Test I/O
• Blind Mating • Base Stations
.
Description
Pasternack’s PE91397 slide-on BMA jack to SMA male adapter is part of our full line of RF components available for same-
day shipping. Our BMA to SMA adapter has a jack to male gender configuration built of durable stainless steel. PE91397 BMA
jack to SMA male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Insertion Loss 0.3 dB
Operating Voltage (AC) 350 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 0.7 in [17.78 mm]
Width 0.315 in [8 mm]
Weight 0.013 lbs [5.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack to SMA Male Adapter PE91397

PE91397 REV 1.0 1
