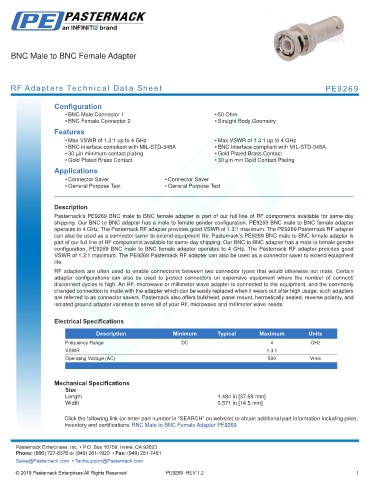

BNC Male to BNC Female Adapter

RF Adapters Technical Data Sheet PE9269

Configuration
• BNC Male Connector 1 • 50 Ohm
• BNC Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 4 GHz • Max VSWR of 1.3:1 up to 4 GHz
• BNC interface compliant with MIL-STD-348A • BNC Interface compliant with MIL-STD-348A
• 30 µin minimum contact plating • Gold Plated Brass Contact
• Gold Plated Brass Contact • 30 µin min Gold Contact Plating
Applications
• Connector Saver • Connector Saver
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9269 BNC male to BNC female adapter is part of our full line of RF components available for same-day
shipping. Our BNC to BNC adapter has a male to female gender configuration. PE9269 BNC male to BNC female adapter
operates to 4 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. The PE9269 Pasternack RF adapter
can also be used as a connector saver to extend equipment life. Pasternack’s PE9269 BNC male to BNC female adapter is
part of our full line of RF components available for same-day shipping. Our BNC to BNC adapter has a male to female gender
configuration. PE9269 BNC male to BNC female adapter operates to 4 GHz. The Pasternack RF adapter provides good
VSWR of 1.3:1 maximum. The PE9269 Pasternack RF adapter can also be used as a connector saver to extend equipment
life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.484 in [37.69 mm]
Width 0.571 in [14.5 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Female Adapter PE9269
-
