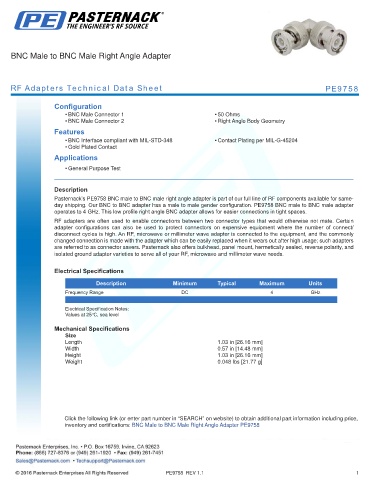

BNC Male to BNC Male Right Angle Adapter

RF Adapters Technical Data Sheet PE9758

Configuration
• BNC Male Connector 1 • 50 Ohms
• BNC Male Connector 2 • Right Angle Body Geometry
Features
• BNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9758 BNC male to BNC male right angle adapter is part of our full line of RF components available for same-
day shipping. Our BNC to BNC adapter has a male to male gender configuration. PE9758 BNC male to BNC male adapter
operates to 4 GHz. This low profile right angle BNC adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
. .
Electrical Specification Notes:
Values at 25°C, sea level

Mechanical Specifications
Size
Length 1.03 in [26.16 mm]
Width 0.57 in [14.48 mm]
Height 1.03 in [26.16 mm]
Weight 0.048 lbs [21.77 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Right Angle Adapter PE9758

PE9758 REV 1.1 1
