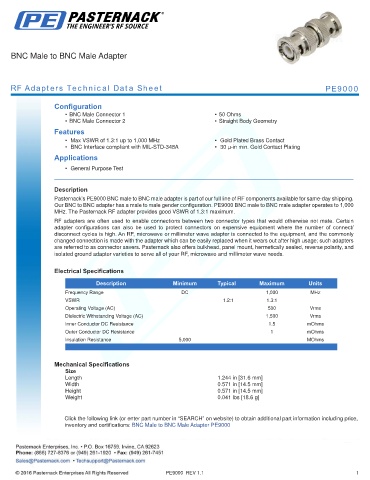

BNC Male to BNC Male Adapter

RF Adapters Technical Data Sheet PE9000

Configuration
• BNC Male Connector 1 • 50 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 1,000 MHz • Gold Plated Brass Contact
• BNC Interface compliant with MIL-STD-348A • 30 µ-in min. Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9000 BNC male to BNC male adapter is part of our full line of RF components available for same-day shipping.
Our BNC to BNC adapter has a male to male gender configuration. PE9000 BNC male to BNC male adapter operates to 1,000
MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.2:1 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 1.244 in [31.6 mm]
Width 0.571 in [14.5 mm]
Height 0.571 in [14.5 mm]
Weight 0.041 lbs [18.6 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Adapter PE9000

PE9000 REV 1.1 1
