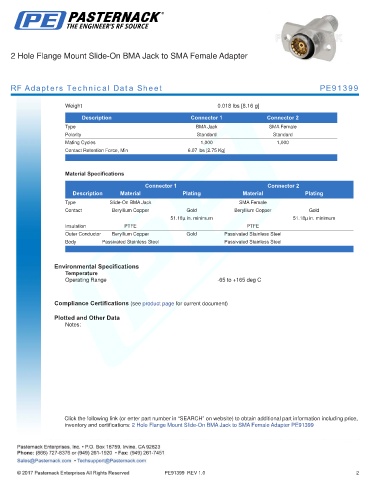

2 Hole Flange Mount Slide-On BMA Jack to SMA Female Adapter

RF Adapters Technical Data Sheet PE91399

Weight 0.018 lbs [8.16 g]
.
Description Connector 1 Connector 2
Type BMA Jack SMA Female
Polarity Standard Standard
Mating Cycles 1,000 1,000
Contact Retention Force, Min 6.07 lbs [2.75 Kg]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Slide-On BMA Jack SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
51.18µ in. minimum 51.18µ in. minimum
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold Passivated Stainless Steel
Body Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2 Hole Flange Mount Slide-On BMA Jack to SMA Female Adapter PE91399
