BNC Male to BNC Male Adapter

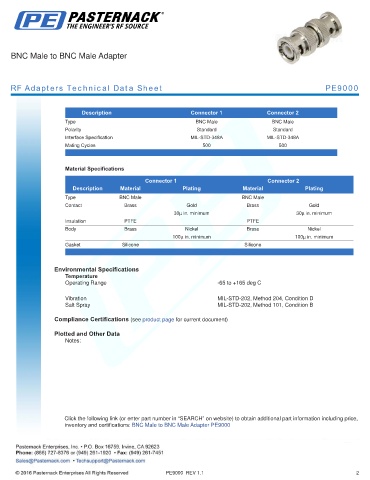

RF Adapters Technical Data Sheet PE9000

.
Description Connector 1 Connector 2
Type BNC Male BNC Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male BNC Male
Contact Brass Gold Brass Gold
30µ in. minimum 30µ in. minimum
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
Gasket Silicone Silicone
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202, Method 204, Condition D
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Adapter PE9000
