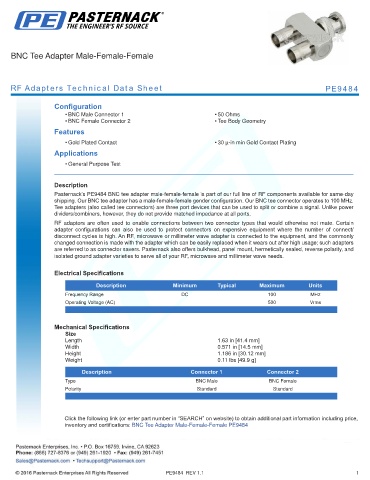

BNC Tee Adapter Male-Female-Female

RF Adapters Technical Data Sheet PE9484

Configuration
• BNC Male Connector 1 • 50 Ohms
• BNC Female Connector 2 • Tee Body Geometry
Features

• Gold Plated Contact • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9484 BNC tee adapter male-female-female is part of our full line of RF components available for same-day
shipping. Our BNC tee adapter has a male-female-female gender configuration. Our BNC tee connector operates to 100 MHz.
Tee adapters (also called tee connectors) are three port devices that can be used to split or combine a signal. Unlike power
dividers/combiners, however, they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 100 MHz
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.63 in [41.4 mm]
Width 0.571 in [14.5 mm]
Height 1.186 in [30.12 mm]
Weight 0.11 lbs [49.9 g]
.
Description Connector 1 Connector 2
Type BNC Male BNC Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Tee Adapter Male-Female-Female PE9484

PE9484 REV 1.1 1
