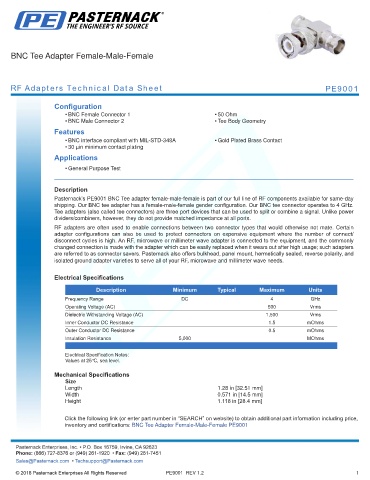

BNC Tee Adapter Female-Male-Female

RF Adapters Technical Data Sheet PE9001

Configuration
• BNC Female Connector 1 • 50 Ohm
• BNC Male Connector 2 • Tee Body Geometry
Features
• BNC interface compliant with MIL-STD-348A • Gold Plated Brass Contact
• 30 µin minimum contact plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9001 BNC Tee adapter female-male-female is part of our full line of RF components available for same-day
shipping. Our BNC tee adapter has a female-male-female gender configuration. Our BNC tee connector operates to 4 GHz.
Tee adapters (also called tee connectors) are three port devices that can be used to split or combine a signal. Unlike power
dividers/combiners, however, they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 0.5 mOhms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.571 in [14.5 mm]
Height 1.118 in [28.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Tee Adapter Female-Male-Female PE9001
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
