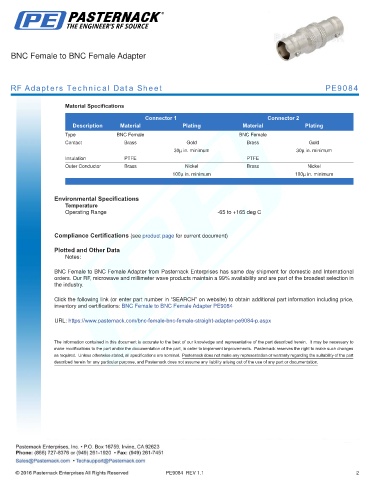

BNC Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9084

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female BNC Female
Contact Brass Gold Brass Gold
30µ in. minimum 30µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

BNC Female to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female to BNC Female Adapter PE9084

URL: https://www.pasternack.com/bnc-female-bnc-female-straight-adapter-pe9084-p.aspx

PE9084 REV 1.1 2
