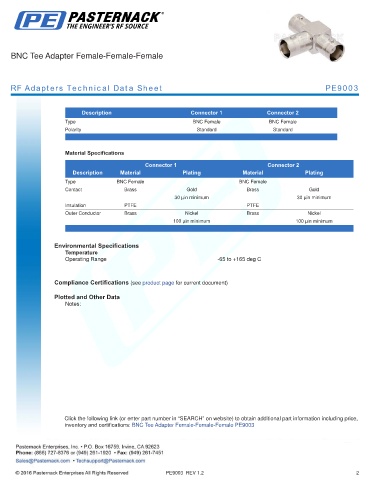

BNC Tee Adapter Female-Female-Female
RF Adapters Technical Data Sheet PE9003
.
Description Connector 1 Connector 2
Type BNC Female BNC Female
Polarity Standard Standard
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female BNC Female
Contact Brass Gold Brass Gold
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µin minimum 100 µin minimum
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Tee Adapter Female-Female-Female PE9003
PE9003 REV 1.2 2
