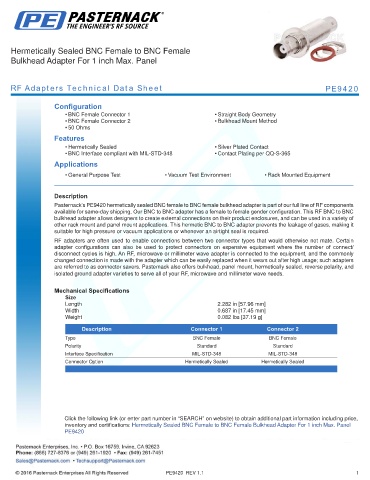

Hermetically Sealed BNC Female to BNC Female
Bulkhead Adapter For 1 inch Max. Panel

RF Adapters Technical Data Sheet PE9420

Configuration
• BNC Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Hermetically Sealed • Silver Plated Contact
• BNC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
Applications
• General Purpose Test • Vacuum Test Environment • Rack Mounted Equipment

.
Description
Pasternack’s PE9420 hermetically sealed BNC female to BNC female bulkhead adapter is part of our full line of RF components
available for same-day shipping. Our BNC to BNC adapter has a female to female gender configuration. This RF BNC to BNC
bulkhead adapter allows designers to create external connections on their product enclosures, and can be used in a variety of
other rack mount and panel mount applications. This hermetic BNC to BNC adapter prevents the leakage of gases, making it
suitable for high pressure or vacuum applications or whenever an airtight seal is required.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.282 in [57.96 mm]
Width 0.687 in [17.45 mm]
Weight 0.082 lbs [37.19 g]
.
Description Connector 1 Connector 2
Type BNC Female BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Connector Option Hermetically Sealed Hermetically Sealed
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Hermetically Sealed BNC Female to BNC Female Bulkhead Adapter For 1 inch Max. Panel
PE9420
